GO Rail Expansion - 401 Highway Rail Tunnel

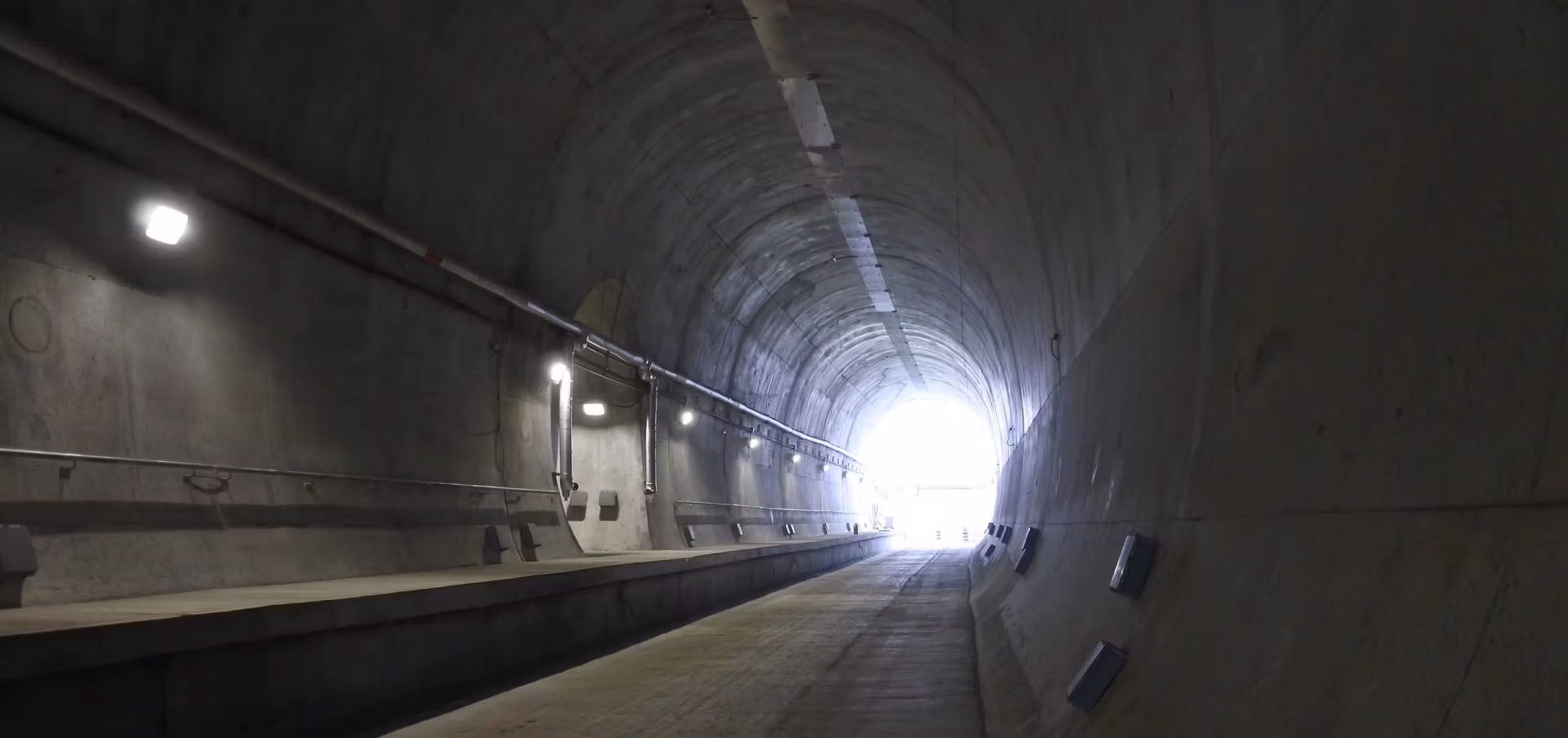

The Highway 401 Rail Tunnel project in Toronto, Ontario involved the construction of a new rail tunnel beneath one of North America’s busiest transportation corridors to support increased capacity along the Kitchener Rail Corridor as part of Metrolinx’s Regional Express Rail program. Delivered under a Design-Build-Finance model, the project included a 176-metre-long tunnel passing beneath 21 lanes of Highway 401 and Highway 409 ramps, designed to accommodate two trains travelling simultaneously without speed restrictions while meeting stringent railway and transportation standards.

Constructed within and adjacent to an active rail corridor and beneath heavily trafficked infrastructure, the project required precise coordination and innovative construction techniques to maintain uninterrupted highway and rail operations. A sequential excavation method was utilized in place of traditional cut-and-cover tunnelling, allowing excavation to proceed safely in stages while protecting existing structures and eliminating disruption to surface traffic. In addition, advanced auger boring technology and a pipe roof system were introduced to Canada for the first time, significantly improving safety, minimizing risk, and accelerating construction.

The scope also included preparation of track subgrade for future rail expansion, installation of conduits to support signaling and communications systems, and integration of safety features such as a dry standpipe firefighting system. Modifications and relocations of highway infrastructure, including guardrails and high-mast lighting, were completed to accommodate the new works.

Achievements

• 2022 Infrastructure Project of the Year (Over $100M) from the Tunneling Association of Canada
• 2021 Silver – National Awards for Innovation & Excellence (Infrastructure) from the Canadian Council for Public-Private-Partnerships
• 2021 Engineering Project of the Year – Large Project Category (First Place) from the Professional Engineers of Ontario (PEO) – York Chapter
• 2023, 2022, & 2020 Top 100 Projects Report on Canada’s Biggest Infrastructure Projects – Platinum Elite Stats from ReNew Canada
